    JJ-MD 014

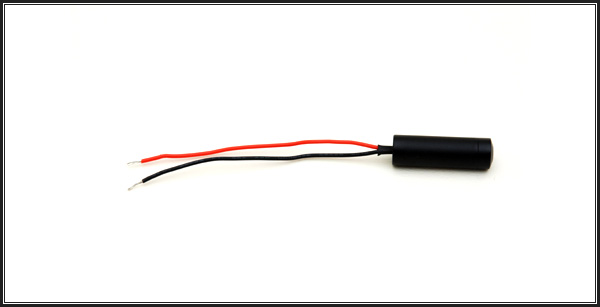

ModulesJJ-MD 014

Model       JJ-MD 014
Wavelength       635nm
Optical Power       <5mW(Class IIIA); <1mW(Class II)
Spot shape       Oval
Spot Range       500 yards
Module material       Copper
Diode Lens Material       Glass
Diode Circuit Type       APC
PCB material       FR-4
Diameter       11.5*30.5mm
Operating voltage       2.6V ~ 12V
Operating current       < 40 mA
Operating Temperature       -10~+40℃
Storage Temperature       -15~+85℃
Expected Life       3000 hrs
